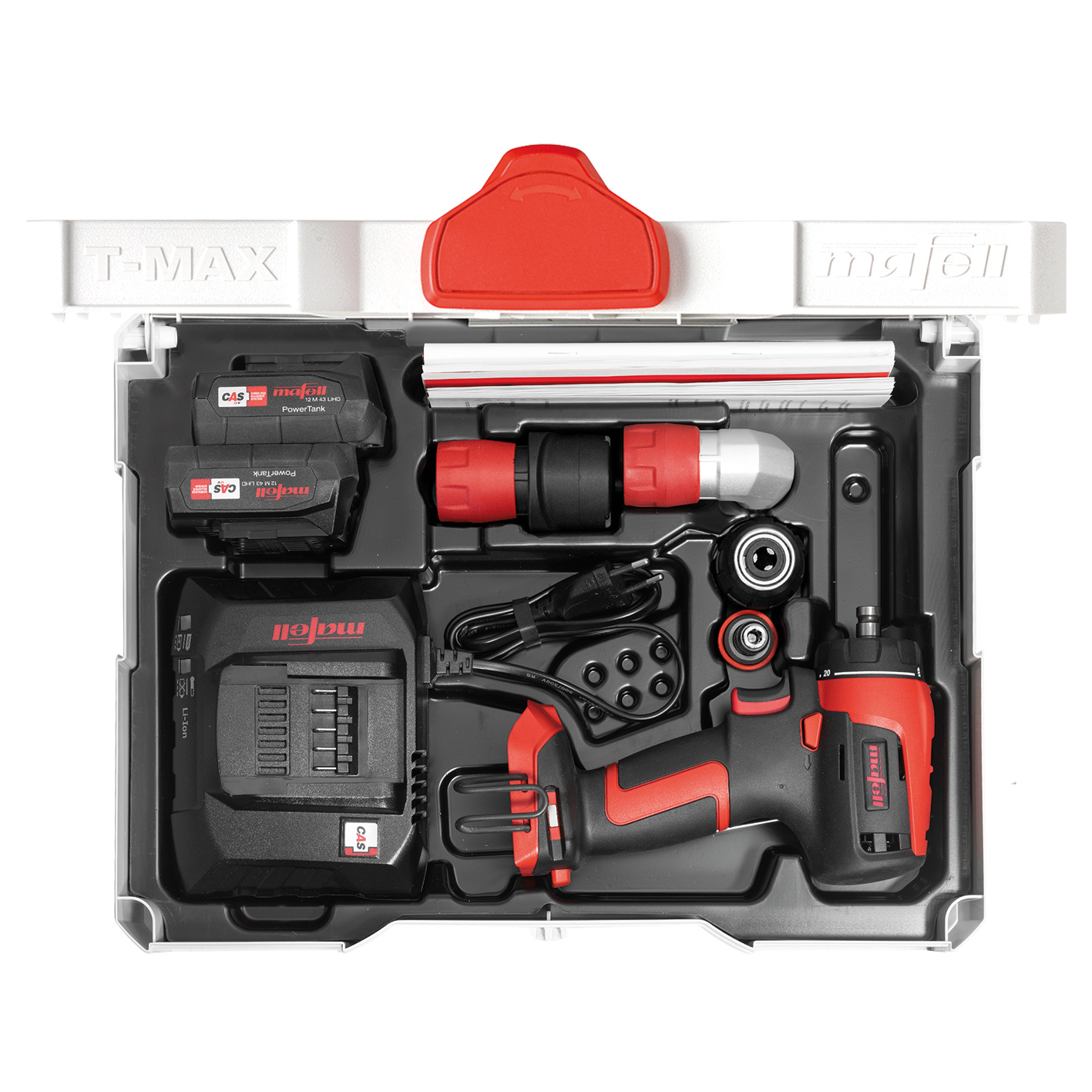

Cordless Drill Driver A 12 - GB in the T-MAX
Ref. no.:
91D021
Delivery specification
- 1 Quick-release chuck A-SBF 10; Ref. No. 209338
- 1 Quick-release angle head A-SWV 10; Ref. No. 206773
- 2 Battery PowerTank 12 M 43 LiHD; Ref. No. 094508
- 1 Belt clip
- 1 Battery-PowerStation APS M - GB; Ref. No. 094493
- Transport and storage box T-MAX
Technical data
| Chuck capacity | 10 mm |
| Chuck capacity | 3/8 in |
| Max. drilling diameter in wood | 25 mm |
| Max. drilling diameter in wood | 1 in |
| Max. drilling diameter in steel | 10 mm |
| Max. drilling diameter in steel | 3/8 in |
| Torque soft | 18 Nm |
| Torque soft / hard | 159 lbf |
| Torque hard | 45 Nm |
| Torque hard | 398 lbf |
| 1st speed range | 0 - 510 1/min |
| 2nd speed range | 0 - 1710 1/min |
| Weight (including battery) | 1 kg |
| Weight (including battery) | 2.2 lbs |
| Dimensions (L x W x H) | 110 x 79 x 195 mm |
| Dimensions (L x W x H) | 4 5/16 x 3 1/8 x 7 11/16 in |
| Nominal voltage | 12 V |
| Torque settings | 20 + 1 |
| Vibrations (measured in metal/reinforced concrete) < | 2,5/- m/s² |
| Vibrations (measured in metal/reinforced concrete) < | 8.2/- ft/s² |
| Sound pressure level dB(A) | 75 |
| Sound power level (LwA) dB(A) | 83 |
Product details
Use of the best materials and first-rate workmanship provide ergonomics and light weight. Hence, the easy to handle multi-talent is the perfect choice for all kinds of interior work.
Tool-free quick-release system for speed and efficiency when alternating between drilling and driving.
The upgraded PowerTanks for our cordless tools feature advanced processor-controlled battery technology. A key advantage lies in continuous monitoring of all the relevant parameters of the individual battery cells, including temperature and charge.
Applications
- Drilling
- Driving
- Fitting and assembly
Advantages
- All the drill drivers have an ideal center of gravity for fatigue-free working – irrespective of the selected attachment or power pack.
- Thanks to magnetic bit holders, the desired bit is always to hand. Deep sockets avoid accidental losses.
- Bits and push-fit accessories are inserted directly in the ¼” drive.
- The trigger allows fine adjustment for intricate work.
- As a result of its outstanding built quality, and the oval shaped handle, the A 12 sits in the hand perfectly.
Usage
MAFELL ErgoBalance design makes all the difference when working long days or reaching above head height.
Maximized use of soft components delivers outstanding grip and safety without burdening the user.
The 20 torque settings are easy to select with the locking collar.
The bright LED lamp illuminates a large working area without casting an inconvenient shadow.
Everything in its place - the carrying case accommodates both the machine and its accessories (not included in the standard delivery scope).
