Cross-Cutting System KSS 300

: Fastening the portable circular saw to the KSS rail creates a very practical single-handed cross-cutting system.

: One system, five saws, one case: the KSS 300 can be used as a cross-cut saw, plunge-cut saw, shadow gap saw or portable circular saw with or without the Flexi-Guide FX 140 for extra guidance when cutting.

: In combination with the roll-up Flexi-Guide FX 140, precise guided cuts up to 1.4 m (4.6 ft) long can be executed with consummate ease.

: Perfect edging: the circular saw's spacers enable you easily to make exact expansion joint cuts with widths from 13 mm (1/2 in.).

Cross-Cutting System KSS 300

Fastening the portable circular saw to the KSS rail creates a very practical single-handed cross-cutting system.

One system, five saws, one case: the KSS 300 can be used as a cross-cut saw, plunge-cut saw, shadow gap saw or portable circular saw with or without the Flexi-Guide FX 140 for extra guidance when cutting.

In combination with the roll-up Flexi-Guide FX 140, precise guided cuts up to 1.4 m (4.6 ft) long can be executed with consummate ease.

Perfect edging: the circular saw's spacers enable you easily to make exact expansion joint cuts with widths from 13 mm (1/2 in.).

By viewing the video, you agree
that your data is transferred to YouTube and that
you have read the privacy policy.

Order number: 916702
Delivery specification
- 1 Flexi-Guide FX 140, 1.4 m (4.6 ft) with splinter guard; Ref. No. 204372
- 2 Clamping claws; Ref. No. 203773
- 1 TCT saw blade 120 x 1,2/1,8 x 20 mm, (4 3/4 in.) 40 flat/trapezoidal teeth; Ref. No. 092559
- 1 Guide track S, max. cutting length 292 mm (15 3/4 in.); Ref. No. 208169
- 1 Parallel guide fence; Ref. No. 203180
- 1 Hose connector; Ref. No. 203782
- 1 Allen key 4 mm; Ref. No. 093074
- 1 Mains cable 4 m (13.1 ft); Ref. No. 087323
- with Flexi-Guide rail in delivery scope
- with 2 clamping claws for Flexi-Guide included in delivery scope
- Compact package in space-saving T-MAX

Close menu

Cutting depth at 0° with guide track	0 - 1 9/16 in
Cutting depth 45° with track	0 - 1 1/16 in
Cutting depth at 0 ° without guide track	0 - 1 5/8 in
Tilt range	0 - 45 °
Cutting length	11 13/16 in
Angle cuts	-60 - +60 °
Nominal No. of strokes – no load	8800 1/min
Nominal power input	1.2 hp
Weight with guide rail	6.6 lbs
Universal motor	230 V / 50 Hz

Cross cuts with guide Rip cuts and cross-cutting Plunge cuts, recesses and cutting shadow...more

Close menu

Cross cuts with guide
Rip cuts and cross-cutting
Plunge cuts, recesses and cutting shadow gaps from 13 mm (1/2 in.)
Compatible materials include board materials, doors, worktops, parquet and laminate flooring, cladding

The pivot point of the KSS 300 is on the side, on the bottom edge of the rail. This has the...more

Close menu

The pivot point of the KSS 300 is on the side, on the bottom edge of the rail. This has the advantage of requiring only a single tracing pointer for all angles – with or without the rail.
Enables you to detach the machine from the rail in a single, quick action. The saw can then be used as a separate portable circular unit with all the functionality of the MAFELL KSP series.
The smart stop and adjustable fence with large scale increments for exact angle settings facilitate very precise and consistent miter cuts.

Close menu

In internal finishing, one thing is important above all else: precision. Designed for supreme handling, the KSS 300 cross-cutting system therefore focuses on all the key functions for this type of work.
Fastening the portable circular saw to the KSS rail creates a very practical single-handed cross-cutting system for bevel and miter cuts; once the cut has been executed, the saw automatically returns to the starting position.
Offering a maximum cutting depth of 42 mm, the portable circular saw delivers ample power in all situations. Thanks to magnesium die-cast components, this especially neat and lightweight saw weighs only 2.4 kg (5.3 lbs).

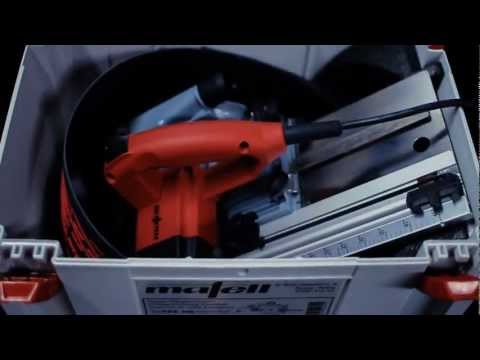

The entire, compact sawing system is accommodated in the T-MAX carrying case - it is an ideal tool for shadow gaps, rip, bevel, plunge and angled cuts, as well as free-hand work.

Close menu

Operating instructions
