DuoDoweler DDF 40 MaxiMAX in T-MAX - USA 120 V

Ref. no.: 918623

Delivery specification

1 auxiliary rest ZA
1 set of additional stops ZAG
1 hose connector
1 position indicator PAZ
2 Anti-slip mats, wrapped; Ref. No. 095063
1 Bottle for glue 250 ml (without glue); Ref. No. 095059
1 Allen key with handle; Ref. No. 093282
1 Mains cable 4 m - GB 110 V; Ref. No. 087850
2 carbide dowel drills-HW, dia. 8 mm
2 carbide dowel drills-HW, dia. 6 mm
1 pack of wooden dowels, 8 x 30 mm, qty. 200
1 pack of wooden dowels, 6 x 30 mm, qty. 350
1 Dowel nozzle Ø 8 mm; Ref. No. 095060
1 side fence set SA 320; Ref. No. 206490
1 stop pin insert for battens LA; Ref. No. 206491

New ergonomic design for easy handling
Patented alignment system
Slimline machine with a flat baseplate

Technical data Product details Usage Videos Downloads / Safety notes Accessories / Tools

Technical data

Drilling depth	0 - 40 mm
Drilling depth	0 - 1 9/16 in
Drill spacing	32 mm
Drill spacing	1 1/4 in
Chuck Ø	8 mm
Chuck Ø	5/16 in
Tool Ø max.	12,2 mm
Tool Ø max.	1/2 in
Tool Ø min.	3 mm
Tool Ø min.	1/8 in
Tilt range	0 - 90 °
Nominal No. of strokes – no load	8000 1/min
Nominal power input	900 W
Nominal power input	1.2 hp
Extraction connection diameter	29 mm
Extraction connection diameter	1 1/8 in
Weight	2,8 kg
Weight	6.2 lbs
Dimensions (W x L x H)	145 x 300 x 164 mm
Dimensions (W x L x H)	5 11/16 x 11 13/16 x 6 7/16 in
Universal motor	120 V / 60 Hz

Product details

The DuoDoweler DDF 40 introduces greater ease and efficiency to the task of drilling accurate dowel holes. Its hallmarks are a broad range of applications, a new ergonomic design for easy handling, and absolutely aligned, stable joints.

Whether in the workshop or on site, no other hand-held power tool can produce such high-quality joints.

When producing corner joints, partitions or rows of holes, the DDF 40 offers not only the precision of a stationary machine, but also the cost savings associated with standard wooden dowels.

In addition, the technique of using dowels in pairs already achieves outstanding stability at the dry assembly stage.

Applications

Rows of holes
Drilling for fittings/hardware
Ideal for carcass and staircase construction in the workshop and on site
Compatible materials include solid wood and board materials
All types of joints from 3 - 12 mm (1/8 in. - 1/2 in.)

Advantages

The rotary knob and scale allow the tilting fence to be accurately repositioned up to a height of 62 mm (2 7/16 in.) . Regularly occurring dimensions can be preset by way of the turret.
Two spring-loaded pins in the baseplate enable the user to drill holes at a fixed distance of 15,5 mm (5/8 in.) from the edge of the work; repetitive drilling without any measuring or marking is simple.
The ergonomic motor housing, with a molded grip at the front and a hump at the rear, gives the operator a perfect hold no matter what the job, while ensuring the ideal transmission of force to the machine.
The tilting fence is located on two columns and fastened with a single adjusting screw. For miter joints, it tilts continuously from 0 through 90 degrees. Indexing stops are provided at 22.5°, 45° and 67.5°.

Usage

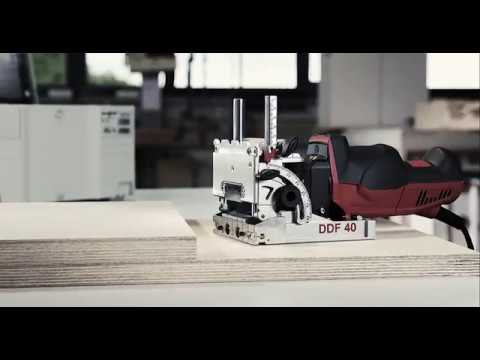

The DDF 40 is a slimline machine with a flat baseplate. It produces practical dowel joints with the ease of handling associated with conventional jointers.

The patented alignment system with spring-loaded stop pins in the baseplate has simply been adapted for the new side fence set SA 320. It allows pairs of holes to be drilled a long distance from the reference edge, and repeated, very easily without any need for marking.

The proven technique of using dowels in pairs rules out the risk of any twisting movement between the two pieces once they are joined. It also holds the pieces in alignment.

A distance of 32 mm between hole centers is an everyday standard for professionals. While other jointing systems always call for additional tooling, the DDF 40 also enables users to produce rows of holes, and holes for hardware, with a spacing of 32 mm. Entire furniture items are therefore easy to assemble.
